 shrink wrapping machine

Shrink Wrap Machine Product Introduction 1/3


Part 2/3
Part 3/3
More Videos
  Search for     Sort by

Auto Side-Seal Machine USA-005N
Click to view Author: BENISON & Co. Benison
Author's EMail Address: benison@benison.com.tw
Number of Downloads: 21  File size: 859 K
Date Created: 3/30/2010 2:08:34 PM
Date Uploaded: 3/30/2010 2:08:34 PM

File Description:
Auto Side-Seal Machine USA-005N

Downloads:21   DOWNLOAD

Auto Easy Model Side-Seal Machine USE-004
Click to view Author: BENISON & Co. Benison
Author's EMail Address: benison@benison.com.tw
Number of Downloads: 51  File size: 966 K
Date Created: 7/27/2009 3:43:33 PM
Date Uploaded: 7/27/2009 3:43:33 PM

File Description:
Model No.
Unit
USE-004

Type

Side Seal

Power

1 220V 50/60 HZ

Machine Diemnsion
(m/m)
1776 x 906 x 1552

Seal Size
L x W (m/m)
450

Package Height
H(m/m)
5-80

Heater
(KW)
1

Motors
(W)
60W x 2, 40W x 1, 25W x 1, 15W x 1

Packaging Speed
Pack/Min
Max. 40

Air Pressure
KG/cm²
5.5(80)



Downloads:51   DOWNLOAD

Auto. Side-Seal Sealer USA004B
Click to view Author: BENISON & Co. Benison
Author's EMail Address: benison@benison.com.tw
Number of Downloads: 135  File size: 1341 K
Date Created: 5/10/2007 4:01:24 PM
Date Uploaded: 7/27/2009 3:36:46 PM

File Description:

Shrink wrapping machine - Auto. Side-Seal Sealer USA004B

Auto. Side-Seal Sealer-USA004B makes applying tight-fitting side seals easy A dual-track system holds your products in place to ensure an even seal, while the packaging equipment's extruded aluminum frame will never rust. Best of all, our shrink wrapping machine can seal continuously, producing as long a seam as needed.
Model No. UnitUSA-004B
Type

Seal of the Side
Power

3ф 220V 50/60HZ
Machine Dimension
 L x W x H (m/m)
2450 x 1300 x 1700
Sealing Bar Length
 L x W (m/m)
∞ x 400
Max. Package Height
 H (m/m)
10-150
Heater
 KW
 600
Motor
 WAC200 x 1 AC40 x 1
AC90 x 3, AC15 x 1
Packaging Capacity
 (Boxes/Min)
 Box. 180 x 110 x 42  (m/m)
60
Air Pressure Required
 KG/cm2
 5.5(80psi)

Click here to view product videos [Inquire]


Downloads:135   DOWNLOAD

HSA-006B(CE)+D600W(CE)
Click to view Author: BENISON & Co. Benison
Author's EMail Address: benison@benison.com.tw
Number of Downloads: 118  File size: 688 K
Date Created: 11/3/2008 10:10:51 AM
Date Uploaded: 11/3/2008 10:10:51 AM

File Description:
HSA-006B(CE)+D600W(CE)
Please download pdf to view detailed product info or contact us

[Inquire]


Downloads:118   DOWNLOAD

AUTO. L-TYPE SEALER LSA-504 SERIES
Click to view Author: BENISON & CO., LTD.
Author's EMail Address: benison@benison.com.tw
Number of Downloads: 212  File size: 1855 K
Date Created: 4/20/2006 3:51:00 PM
Date Uploaded: 6/11/2008 4:25:51 PM

File Description:

PACKAGING EQUIPMENT - AUTO . L-TYPE SERIES SEALER Specification

Our L-Type Series Sealer is ideal for shrink wrapping thin and small objects. This piece of packaging equipment features a thermo-controlled alloy knife that eliminates harmful gases caused by burning shrink wrapping materials, as well as a fine-tuned temperature control system to ensure the best sealing line possible. Our newest model sets a gold standard among shrink wrapping machines for neatness and safety, with both the discharge and shrink adjustment processes now fully automated.

Type
Unit


Standard
LSA-504C

Closing Conveyor
LSA-504G(CE)

Center Seal line & Closing Conveyor
Machine Dimension(m/m)1730 x 910 x 1380
1730 x 910 x 13801835 x 925 x 1475
Max. Package Height(m/m)120
120
100 - 180
Motor(W)AC25 x 1/AC40 x 1 AC60 x 2/AC15 x1
AC25 x 1/AC40 x 1 AC60 x 2/AC15 x1 AC25 x 1/AC40 x 1 AC60 x 3/AC15 x1
packaging Capacity(Boxes./Min) 25 - 30
 20 - 25
 20
Air Pressure Required(KG/cm2)
 5.5 (80psi)
 5.5 (80psi) 5.5 (80psi)
for more model details please check product brochure.
Click here to view product videos

Download AUTO. L-TYPE SEALER LSA-504 (Open-Cover) product brochure
[Inquire]


Downloads:212   DOWNLOAD

AUTO. L-TYPE SEALER LSA-706A
Click to view Author: BENISON & CO., LTD.
Author's EMail Address: benison@benison.com.tw
Number of Downloads: 138  File size: 1344 K
Date Created: 4/20/2006 3:48:28 PM
Date Uploaded: 6/11/2008 4:22:51 PM

File Description:

PACKAGING EQUIPMENT - AUTO . L-TYPE SEALER Specification

This precision piece of packaging equipment has all of the expert features of its brother unit, the , tailored to fit more challenging tasks. With the series-standard alloy knife and temperature-control systems, you can expect the same quality shrink wrapping results as before, but now applied to irregularly shaped and larger objects.

Model No. UnitLSA-908A
Type

CE mark certified
CE mark certified
Power

3 220V 50/60HZ
3 220V 50/60HZ
Machine Dimension
 L x W x H (m/m)
2430 x 1810 x 1760
 2780 x 2090 x 1900
Sealing Bar Length
 L x W (m/m)
750 x 650
 950 x 850
Max. Package Height
 H (m/m)
200  300
Heater
 KW
 1.7
 2.0
Motor
 WAC25 x 1 AC40 x 1
AC90 x 3, AC15 x 1
AC25 x 1 AC40 x 1
AC90 x 3, AC15 x 1
Packaging Capacity
 (Boxes/Min)
 Box. 180 x 110 x 42  (m/m)
 15
 10
Air Pressure Required
 KG/cm2
 5.5(80psi)
5.5(80psi)
for more model details please check product brochure.
Click here to view product videos [Inquire]


Downloads:138   DOWNLOAD

SEMI AUTO. L-TYPE SEALER & TUNNEL LTS-504
Click to view Author: BENISON & CO., LTD.
Author's EMail Address: benison@benison.com.tw
Number of Downloads: 122  File size: 725 K
Date Created: 3/6/2006 1:07:53 PM
Date Uploaded: 6/29/2006 9:12:55 AM

File Description:
SEMI AUTO . L-TYPE SERIES SEALER & TUNNEL Specification
Model No. UnitLTS-504LTS-504A
Specification



Power

3 ø 220V 50/60HZ
3 ø 220V 50/60HZ
Machine Dimension
 L x W x H (m/m)
2325 x 650 x 1210
 2355 x 760 x 1210
Sealing Bar Length
 L x W (m/m)
500 x 400
 500 x 400
Max. Package Height
 H (m/m)
150  150
Heater
 KW
 7.2
 7.2
Motor
 W25W x 1, 1/4 HP x 1, 40W1 25W x 1, 1/4 HP x 1, 40W1
Packaging Capacity
 (Boxes/Min)
 Box. 180 x 110 x 42  (m/m)
 15 - 20
 15 - 20
Air Pressure Required
 KG/cm2

5.5(80psi)
for more model details please check product brochure.
Click here to view product videos [Inquire]


Downloads:122   DOWNLOAD

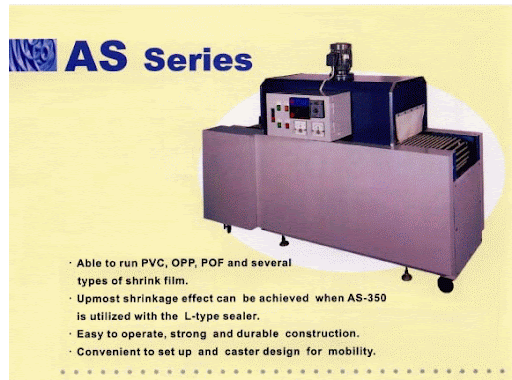

SERIES OF HEAT SHRINK TUNNEL
Click to view Author: BENISON & CO., LTD.
Author's EMail Address: benison@benison.com.tw
Number of Downloads: 201  File size: 1397 K
Date Created: 3/6/2006 2:22:24 PM
Date Uploaded: 6/29/2006 9:11:38 AM

File Description:

SERIES OF HEAT SHRINKING TUNNEL FOR WRAPPING PACKAGE

Benison offers a full line of shrink tunnels that provide flexible and specialized packaging equipment solutions. All of our shrink tunnels and mobile and designed to work seamlessly with our line of shrink wrapping machines and sealers, achieving a peerless shrink and superior automation schedule.


Model No.
Power
Machine Dimension
LxWxH(m/m)
Tunnel Dimension(m/m)
Option
(standard type)
Option (CE TYPE)
AS-350
1ø 220V
3 ø 220V
1800 x 730 x 1365
1000 x 350 x 150
 •

DS-400
1ø 220V
3 ø 220V
1500 x 630 x 1400
900 x 400 x 200
 • •
DS-400L
3 ø 220V2600 x 630 x 1650
2000 x 400 x 200

 •
DS-500
3 ø 220V1800 x 730 x 1450
1100 x 500 x 250
 • •
for more model details please check product brochure.
Click here to view product videos [Inquire]


Downloads:201   DOWNLOAD

[<< BACK]    PAGE 1 OF 2   [NEXT >>]
